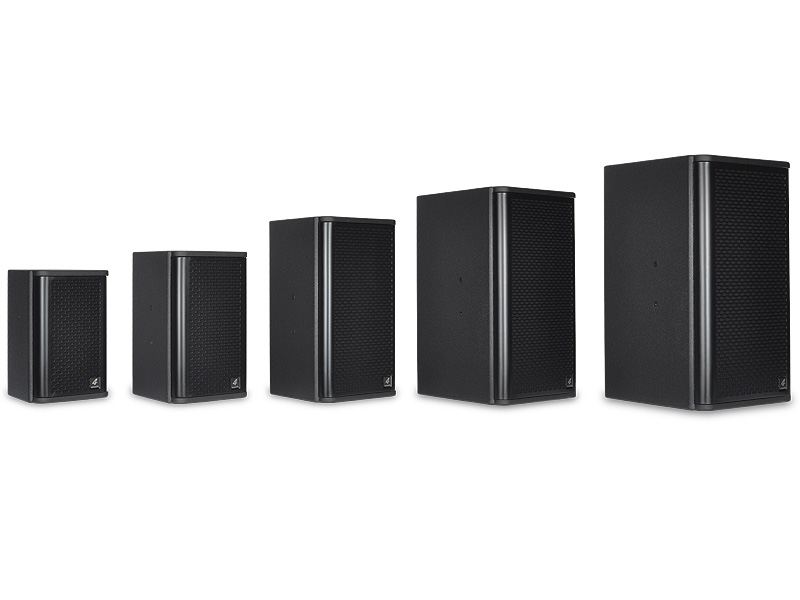

PCS-Q Fullrange-Lautsprecher
| Model | PCS-106Q | PCS-108Q | PCS-110Q | PCS-112Q | PCS-115Q |
| System Typ | 2-Way 6,5“+1“ Fullrange Speaker |
2-Way 8“+1“ Fullrange Speaker |
2-Way 10“+1“ Fullrange Speaker |
2-Way 12“+1,4“ Fullrange Speaker |
2-Way 15“+1,4“ Fullrange Speaker |
| Maximum SPL | 117 dB | 122 dB | 128 dB | 136 | 136 dB |
| Abmessungen | 365x249x242 mm | 450x275x290 mm | 525x312x295 mm | 620x374x385 mm | 700x419x436 mm |
| Gewicht | 9,5 kg | 13,0 kg | 16,5 kg | 23,0 kg | 34,0 kg |
PCS-106Q GS1 (EAN) CODE: 4260318511636
PCS-108Q GS1 (EAN) CODE: 4260318511643
PCS-110Q GS1 (EAN) CODE: 4260318511469
PCS-112Q GS1 (EAN) CODE: 4260318512008
PCS-115Q GS1 (EAN) CODE: 4260318511711
Technische Daten
| Model | PCS-106Q | PCS-108Q | PCS-110Q | PCS-112Q | PCS-115Q |
| GS1 (EAN) CODE | 4260318511636 | 4260318511643 | 4260318511469 | 4260318512008 | 4260318511711 |
| System Typ | 2-Wege 6,5“+1“ Fullrange-Lautsprecher |
2-Wege 8“+1“ Fullrange-Lautsprecher |
2-Wege 10“+1“ Fullrange-Lautsprecher |
2-Wege 12“+1,4“ Fullrange-Lautsprecher |
2-Wege 15“+1,4“ Fullrange-Lautsprecher |
| Leistung | 100 W AES 200 W program 400 W peak |
200 W AES 400 W program 800 W peak |
300 W AES 600 W program 1200 W peak |
500 W AES 1000 W program 2000 W peak |
600 W AES 1200 W program 2400 W peak |
| Abstrahlwinkel (hxv) | 90°x40° | 90°x40° | 90°x40° | 90°x40° | 90°x40° |
| Frquenzgang (+/- 3 dB) | 57 Hz - 20 kHz | 53 Hz - 20 kHz | 50 Hz - 20 kHz | 41 Hz - 20 kHz | 40 Hz - 20 kHz |
| Empfindlichkeit | 95 dB 1w/1m | 96 dB 1w/1m | 98 dB 1w/1m | 101 dB 1w/1m | 101 dB 1w/1m |
| Maximal SPL | 127 dB | 122 dB | 128 dB | 136 dB | 136 dB |
| Impedanz | 8 Ohm | 8 Ohm | 8 Ohm | 8 Ohm | 8 Ohm |
| Anschlüsse | 2xNeutrik NL4 Buchse Parallel 1+/1- |
2xNeutrik NL4 Buchse Parallel 1+/1- |
2xNeutrik NL4 Buchse Parallel 1+/1- |
2xNeutrik NL4 Buchse Parallel 1+/1- |
2xNeutrik NL4 Buchse Parallel 1+/1- |
| Gehäuse | Birken Multiplex Holz | Birken Multiplex Holz | Birken Multiplex Holz | Birken Multiplex Holz | Birken Multiplex Holz |
| Lakierung | Wasserfeste Polyurea Beschichtung | Wasserfeste Polyurea Beschichtung | Wasserfeste Polyurea Beschichtung | Wasserfeste Polyurea Beschichtung | Wasserfeste Polyurea Beschichtung |
| Abmessungen | 365x249x242 mm | 450x275x290 mm | 525x312x295 mm | 620x374x385 mm | 700x419x436 mm |
| Gewicht | 9,5 kg | 13,0 kg | 16,5 kg | 23,0 kg | 34,0 kg |

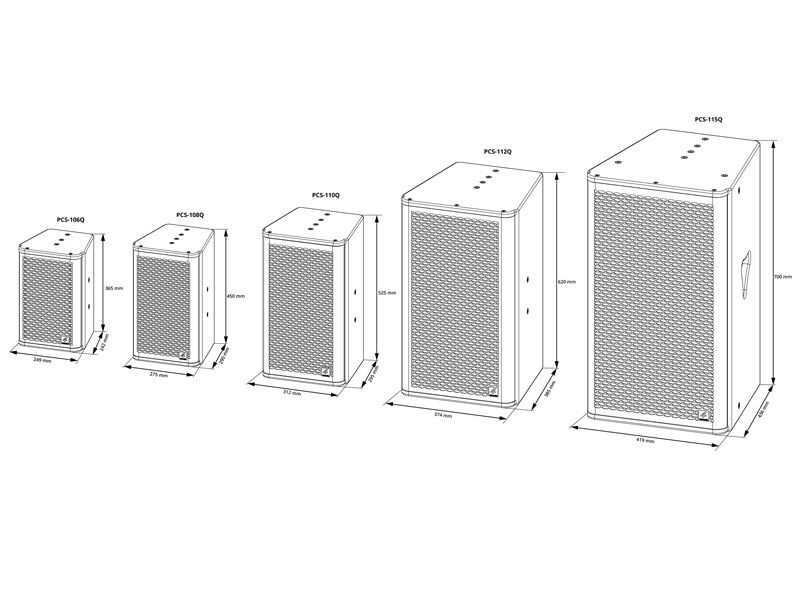

Zeichnung

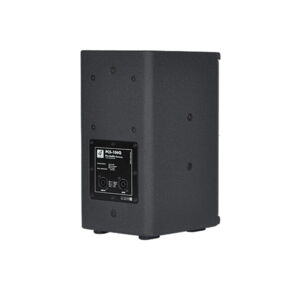

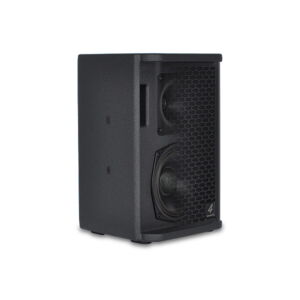

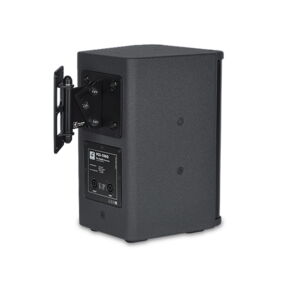

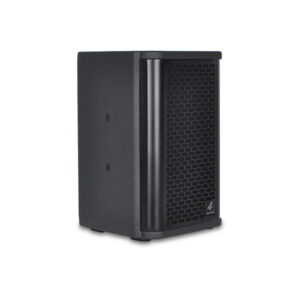

Bilder PCS-106Q

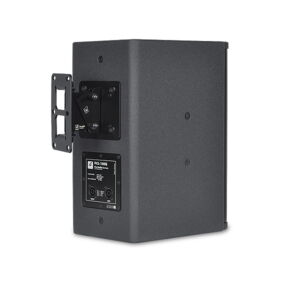

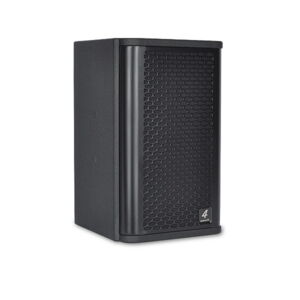

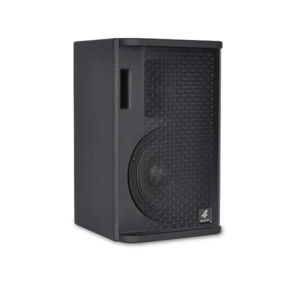

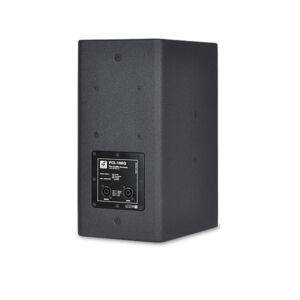

Bilder PCS-108Q

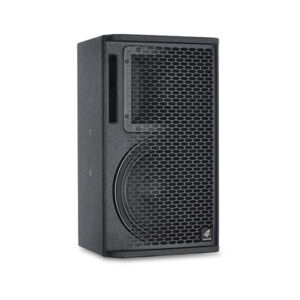

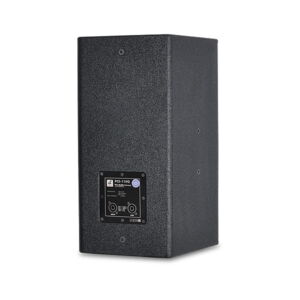

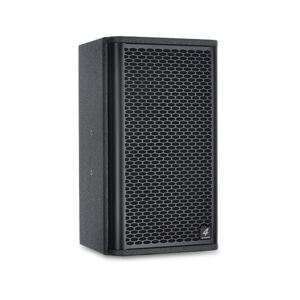

Bilder PCS-110Q

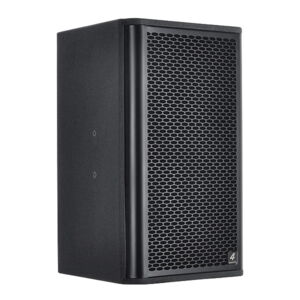

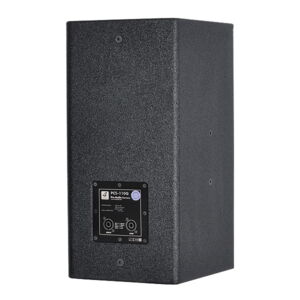

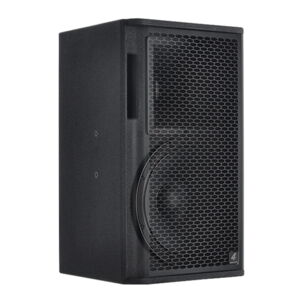

Bilder PCS-112Q

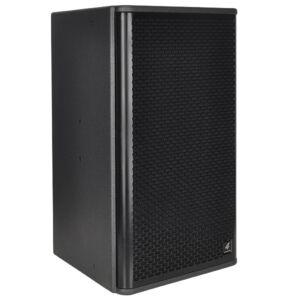

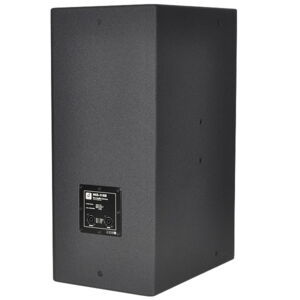

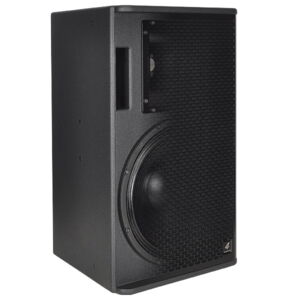

Bilder PCS-115Q
